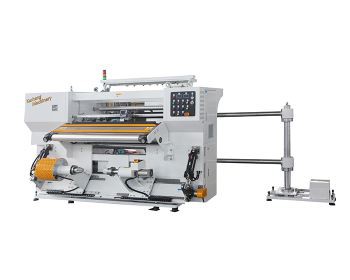

High Speed Aluminium Foil Roll Slitting and Rewinding Machine
Description
High-speed aluminum foil slitting machine, unwinding diameter 1000mm, winding diameter 600mm, 4 motor structure, mechanical speed 200m/min.
Company Advantage
Founded in 2006, the company has extensive experience in the manufacture of slitting machines, machines are sold in more than 30 countries, and we participate in several international exhibitions every year.
FAQ
1. Q: What about the after-sale service?
A: We provide 12 months quality warranty after dispatch,and some free easy abrasion spares of machine,we also provide long time free technical advisory services and technical clonsluting services,we will dispatch our engineer to go aboard to provide technical service if it is necessary
2. Q:Can your products be customized?
A: Yes, we have a professional team which has rich experience in welding equipments,so we'll try our best to satisfy your requirement.
3. Q:What about the transportation?
A: Usually we take seaway,cause it's more convenient and cheaper.
4. Q: What's your after-sale service?
A: Some damageable spare parts can be offered free.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Sparklewheel People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
https://www.ksslitter.com
Parameter
| Unwinding diameter | Max Ø1000mm |
| Rewind diameter | Max Ø600mm |
| Max working width | 1000mm |
| Unwind core diameter | Ø76mm (3") / Ø152mm(6") |
| Rewind core diameter | Ø76mm (3") |
| Mechanical speed | Max 250m/min (depending on working conditions) |
| Material thickness range | 0.012mm-0.15mm |
| Traction motor | 1 Set 5.5 kw |
| Rewinding motors | 2 Set 5.5 kw |
| Unwinding motor | 1 Set 7.5 kw |
| Total energy consumption | ≈20 kw |
| Pneumatic pressure | 0.6 Mpa |
| Power supply voltage | AC 380V±5% Three-phase five-wire、50Hz |
| Guiding accuracy | ±0.2mm |
| Web guiding Movement range | ±50mm |
| Meter accuracy | ±0.001m |
| Machine dimension | L2000*W3000*H1870 |
| Weight | 4500 kg |
Product Details
