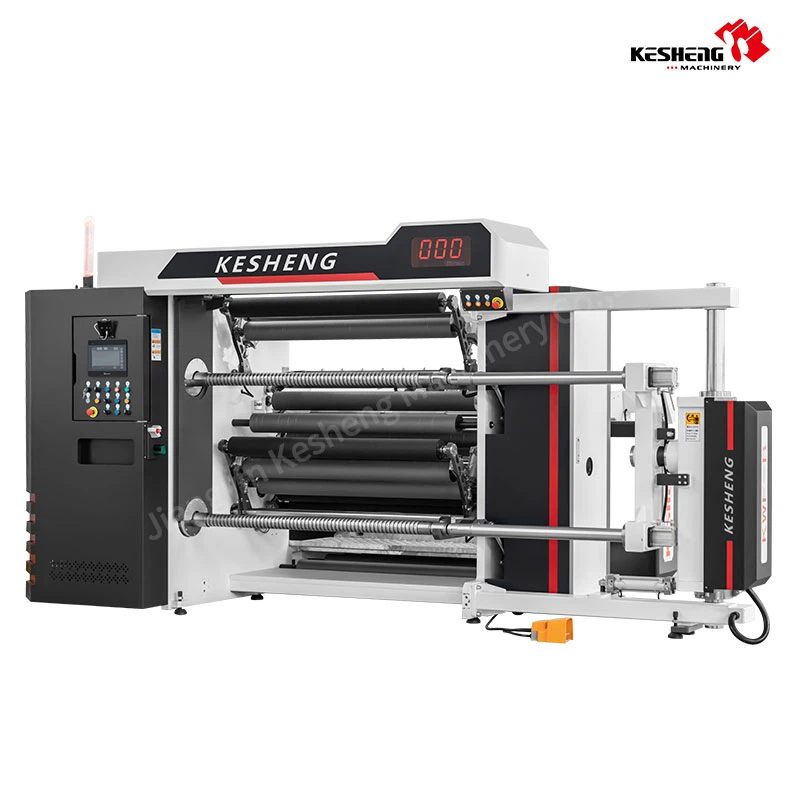

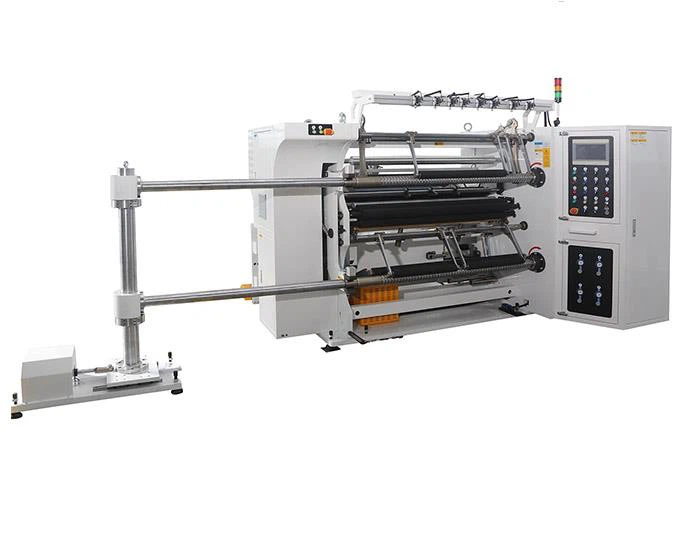

High Speed Plastic Film Slitter Rewinder Machine
Description:
Vertical large-volume film slitting machine, suitable for cutting of rolled materials such as BOPP/ CPP/ PET/ PE/ soft aluminum composite film / aluminized film, equipped with unloading rack, electrical components are mostly imported, technicians Can go abroad to install.
Company Advantage:
Our company was established in 2006. It is one of the top three slitting machines, rewinding machines and inspection machine manufacturers in China. We have two factories and have machine exhibition halls, finishing centers and nearly 100 workers.
Parameter:
| Unwinding diameter | Max Ø800mm |
Rewind diameter | Max Ø450mm |
| Max working width | 1300mm |
| Unwind core diameter | Ø76mm (3") / Ø152mm(6") |
| Rewind core diameter | Ø76mm (3") / Optional Ø152mm(6") |
| Min. slitting width | 30mm / Optional 25mm |
| Mechanical speed | Max 450m/min (depending on working conditions) |
| Material thickness range | 0.012mm-0.15mm |
| Traction servo motor | 1 Set 3.0 kw |
| Rewinding servo motors | 2 Set 3.0 kw |
| Blower motor | 1 Set 1.5 kw |
| Total energy consumption | est. 12 kw |
| Pneumatic pressure | 0.6 Mpa |
| Power supply voltage | AC 380V±5% Three-phase five-wire、50Hz |
| Guiding accuracy | ±0.3mm |
| Web guiding Movement range | ±100mm |
| Machine dimension | L2400*W3400*H2200mm |
| Weight | 4300 kg |

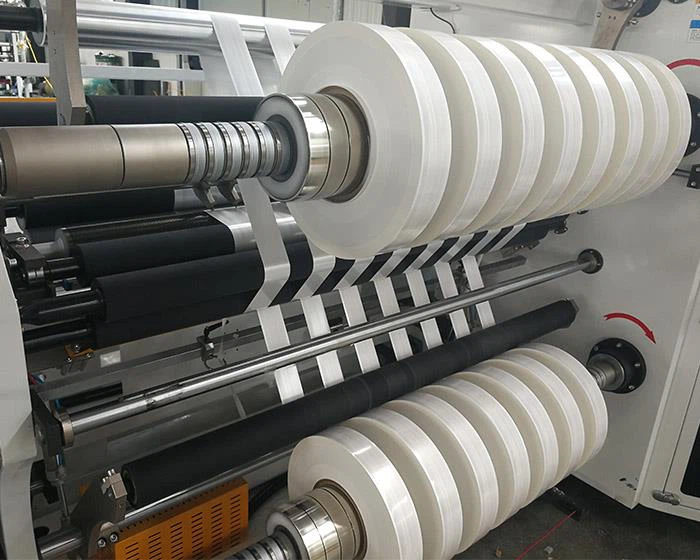

Product Details:
