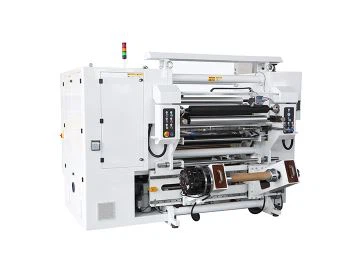

Aluminum Coil Slitting Machine
Device effective width：1300mm
Unwinding diameter：Φ1000mm(MAX)
Rewinding diameter：Φ600mm(MAX)
Mechanical speed：300m/min
Application
Aluminum coil slitting machine is used for the slitting of all kinds of soft aluminum, pure aluminum, aluminum-plastic lamination material,etc.
Features
|
1. Shaftless cone top 2. Hydraulic material auto lift up 3. Multifunctional material connection platform 4. Adjustable web guider 5. Servo driving system |
6. Circular knife slitting 7. The maximum speed can reach 300 m/min 8. Automatic detection of unwinding diameter 9. Infrared ray paper tube positioning 10. Surface curled |
Parameter
|
Device effective width |
1300mm |
|
Unwinding diameter |
Φ1000mm(MAX) |
|
Rewinding diameter |
Φ600mm(MAX) |
|
Mechanical speed |
300m/min |
Optional
Unloading rack
Mechanical arm
A set of static elimination rods (2 pieces)
