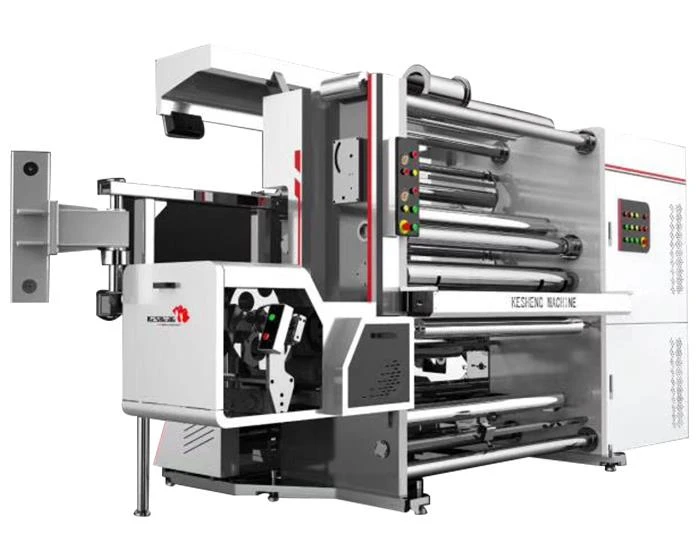

Automatic Vertical Paper Slitting And Rewinding Machine
Description:

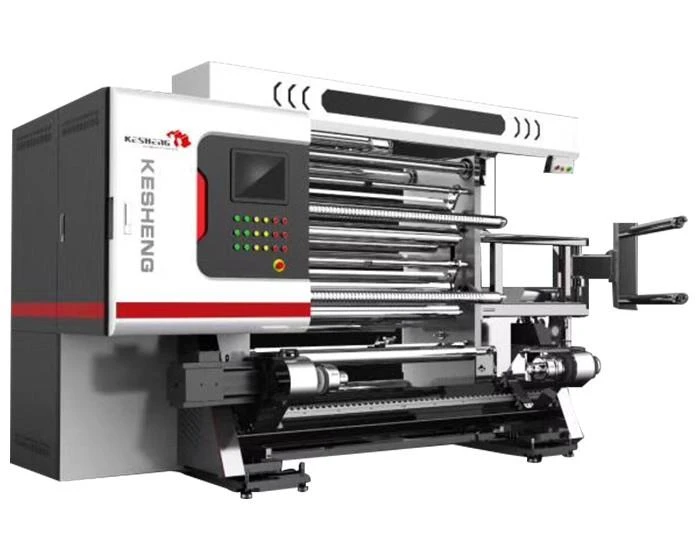

The machine model is FA600.This is a popular choice for full-width slitting of a wide range of films, laminates, label stock and paper.
Fully automated design, speed 600m/min, precise tension control system, greatly improving production efficiency
Parameter:
| Unwinding diameter | Max 800 mm |
| Rewind diameter | Max 600 mm |
| Max working width | 1300 mm |
| Unwind core diameter | 76 mm (3") / 152 mm(6") |
| Rewind core diameter | 76 mm (3") |
| Min. slitting width | 30 mm |
| Mechanical speed | Max 600m/min (depending on working conditions) |
| Slitting types | Razor blade /Circular knives slitting system |
Features:
1 the aircraft is the vertical minute strip machine.
2 Independent always controls the screen, the operation is more nimble conveniently.
3 Puts the volume to correct an error automatically, the light electric eye is suitable for the track transparent material edge and the color.
4 Puts the volume tension to use the magnetic powder brake control.
5 receives the volume to use the magnetic powder clutch control
6 Side, is equipped with the material wind to deliver or the volume takes the installment (time ordering chooses).
7 Walks material length automatic idea Mi.
8 Receives the press roll to cause the volume material to be smoother.
9 airshafts.
Uses:
This machine is suitable for BOPP, PET, CPP, CPE, PVC, PE, the aluminum foil, the paper and so on each kind of volume shape material minute strip, carries on the cutting edge in the production process according to the different need to the material, divides cuts and so on.
