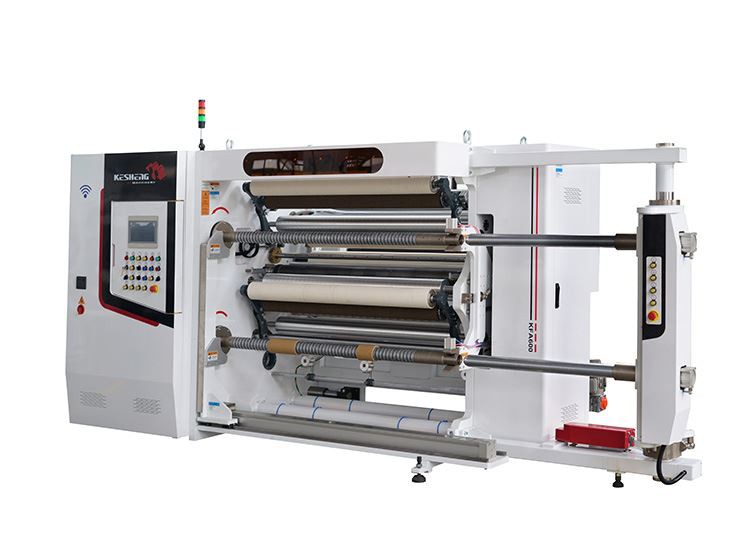

Plastic Film Roll Slitting Machine
Plastic Film Roll Slitting Machine

Plastic Film Roll Slitting Machine

Description: This is a multifunctional slitting machine, suitable for a variety of materials, such as CPP, BOPP, PVC, PET, paper and various rolls of film，The tension system is stable and can adapt to different materials.Currently this device has been sold to many countries, such as South Korea,...

Send Inquiry

Product Introduction

Description:

This is a multifunctional slitting machine, suitable for a variety of materials, such as CPP, BOPP, PVC, PET, paper and various rolls of film，The tension system is stable and can adapt to different materials.Currently this device has been sold to many countries, such as South Korea, Vietnam, Indonesia, the United States, etc.

Technical Specifications：

Unwinding diameter	Max Ø800 mm
Rewind diameter	Max Ø600 mm
Max working width	1300 mm
Unwind core diameter	Ø76 mm (3") / Ø152 mm(6")
Rewind core diameter	Ø76 mm (3")
Mechanical speed	Max 450 m/min (depending on working conditions)
Slitting types	Razor blade /Circular knives(Optional)slitting system
Applicable materials	BOPP ,PET, CPP ,PE, Laminated film ,metallized filmand other roll-type materials
Material thickness range	0.012mm-0.15mm
Traction servo motor Unwinding servo motors	1 Set 3.0kw 1 Set 5.0kw
Rewinding servo motors	2 Set 3.0 kw
Blower motor	1 Set 1.5 kw
Total energy consumption	≈17kw
