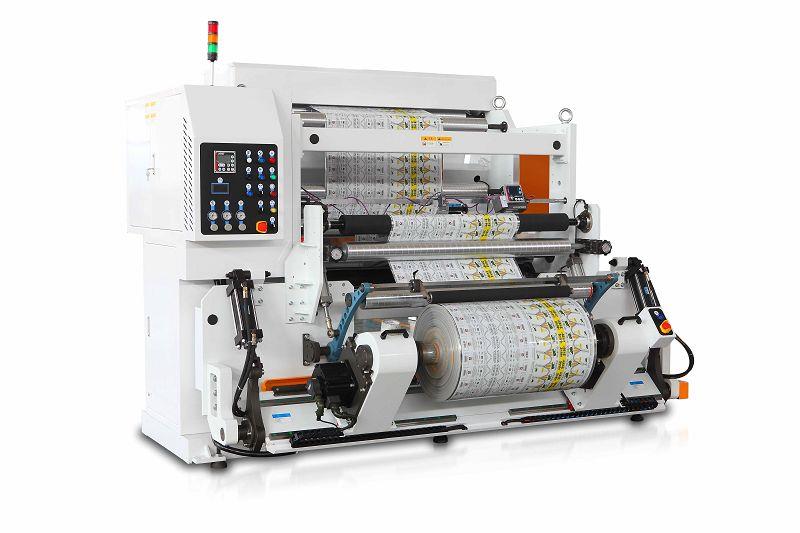

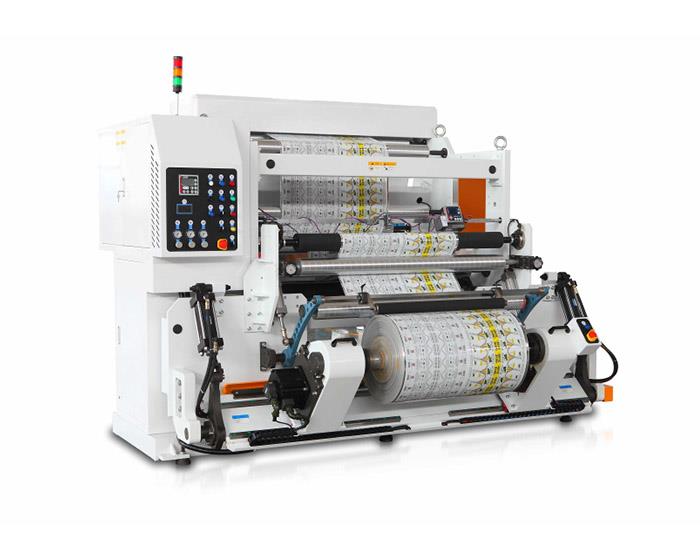

Rewinder Machine To Inspect Printed Film Rolls
Description
PLC control, plastic film mother roll rewinding inspection machine, can be installed computer inspection system to check the flaw on the film, mechanical speed 300m / min, winding and rewinding diameter are 1000mm.
Features
1. Winding tension detection: pressure sensor detects tension, Automatic calculation and control by PLC according to the set value
2. Direction of rotation: The winding station can be used as a unwinding station, and the winding in the forward and reverse directions changes according to the needs of the product.
3. Measure length - the measuring length is directly converted by the pulse signal of build-in encoder of servo motor, with high precision and high resolution, accumulative measuring length, and automatic stop to the number.
Parameter
| Unwinding diameter | Max Ø800mm |
| Rewind diameter | Max Ø800mm |
| Max working width | 1300mm |
| Unwind core diameter | Ø76mm (3") |
| Rewind core diameter | Ø76mm (3") |
| Mechanical speed | Max 300m/min (depending on working conditions) |
| Material thickness range | 0.012mm-0.15mm |
| Traction motor | 1 Set 3 kw |
| Rewindingmotor | 1 Set 5 kw |
| Unwinding motor | 1 Set 5 kw |
| Total energy consumption | ≈15 kw |
| Pneumatic pressure | 0.6 Mpa |
| Power supply voltage | AC 380V±5% Three-phase five-wire、50Hz |
| Guiding accuracy | ±0.3mm |
| Web guiding Movement range | ±100mm |
| Machine dimension | L3000*W2300*H2300 |
| Weight | 4120 kg |
