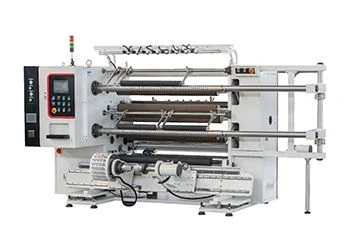

Kraft Paper Slitting Rewinding Machine
Introduction
Kraft Paper Slitting Rewinding Machine is a KLF-PD slitting machine product produced by Kesheng. The improved product has many advantages and is more satisfied with customers.
Kraft Paper Slitting Rewinding Machine is a slitting machine used for slitting wide-width paper or film into multiple narrow-width materials, and is often used in papermaking machinery and printing and packaging machinery.
The unwinding chuck is equipped with a pneumatic shaft support coil and is equipped with a 3-inch air expansion shaft with a convex key. And is equipped with an analog correction system, which can track the edge of the material or printing line.
Rubber roller traction roller. After the dynamic and static balance is corrected, the operation is stable, no vibration source, suitable for a wide range of materials and high-speed applications. The grooved roller is anodized to improve rigidity and quality. The specifications are groove width 2mm and groove handle 1mm to suit various materials. Standard 5-tool holder, with scale, easy to replace.
Drive- uses variable frequency motor to achieve high precision speed. It is controlled by PLC through the interface and preset operating parameters on the monitor. All drive components are built-in or equipped with protective covers to ensure personal safety. Customers can also choose to install static eliminators on the machine.。
specification
Unwinding diameter | Max Ø800 mm |
Rewind diameter | Max Ø400 mm |
Max working width | 1300 mm |
Unwind core diameter | Ø76 mm (3") |
Rewind core diameter | Ø76 mm (3") |
Mechanical speed | Max300 m/min (depending on working conditions) |
Slitting types | Razor blade /Circular knives(Optional)slitting system |
Applicable materials | PET, BOPP, PVC, composite materials, and label reel materials, etc. |
Material thickness range | 0.012mm-0.15mm |
Traction motor | 1 Set5.5kw |
Blower motor Unwinding brake Winding clutch | 1 Set 0.75 kw 1 Set 10kg 1Set 10kg |
Total energy consumption | ≈7kw |
Pneumatic pressure | 0.6 Mpa |
Power supply voltage | AC 380V±5% Three-phase five-wire、50Hz |
Un. tension control | Constant tension |
Re. tension control Coiling method Loading method Unloading method | Taper tension Center winding( Double rewinding shafts) Inflatable shaft support coil Side arm type transverse unloading |
Guiding accuracy | ±0.3mm |
Machine dimension | L2700*W2000*H1500 |
Weight | 2500kg |
Color | standard KESHENG colors (reference picture) |
Features
1. It is welded with thick steel plates, firm and balanced in angle, so that the machine can still run smoothly under high-speed working conditions.
2. The whole machine adopts chrome-plated steel pipes, each of which has been carefully balanced.
3. The unwinding adopts a 3-inch inflatable unwinding shaft, the maximum unwinding diameter can reach 800mm, and it is equipped with a magnetic powder tension controller and automatic edge alignment device.
4. The rewinding adopts a 3-inch inflatable reel and a magnetic powder tension controller to rewind, the slitting operation is simple, and the maximum rewinding diameter can reach 400mm; the rewinding is beautiful and neat
5. Number of knife holders-standard 5 knife holders, with scales, easy to replace. .
6. The main shaft and the round knife use a continuously variable speed system, which can be used as a high-low speed control and forward and reverse switching control; an electronic speed control system, which is convenient and simple to manually adjust the speed of the machine during use.
7. This machine is equipped with a blowing device, which can be used to smoothly blow out the edge of the material through the duct.
8. Imported precision ball screw and slide rail are used to advance the cutting width in parallel, and the imported AC motor adjustment system steplessly adjusts and controls the cutting speed, so as to achieve high-precision cutting, and the accuracy can be controlled within 0.1 mm.
9. Equipped with high-precision correction device system to further ensure cutting accuracy.
10. Control-Controlled by PLC through preset operating parameters on the interface and monitor
11. Adopting the design of fast discharging, the loading and unloading can be completed with only one action, which effectively reduces the amount of labor in production, thereby improving production efficiency.
12. Equipped with automatic counting device, which is clear at a glance.
